Introduction

In statistics, maximum likelihood estimation (MLE) is a method of estimating the parameters of a probability distribution by maximizing a likelihood function, so that under the assumed statistical model the observed data is most probable. The point in the parameter space that maximizes the likelihood function is called the maximum likelihood estimate. The logic of maximum likelihood is both intuitive and flexible, and as such the method has become a dominant means of statistical inference. From Wikipedia - Maximum likelihood estimation

Coverage probability is an important operating characteristic of methods for constructing interval estimates, particularly confidence intervals.

The goal of this post is to perform a simulation to calculate the coverage probability of the 95% confidence interval of the median when computed from F_X^mle.

library(stats4)
library(tidyverse)

Step 1: Single sample

Generate a single sample from a standard normal distribution of size N = 201.

First, let’s set the sample size (N) to 201 and create a sample from a standard normal distribution.

N <- 201
sample1 <- rnorm(201)
median(sample1)

Then use the MLE function we learned before.

nll <- function(mean, sd) {
  fs <- dnorm(sample1,
              mean = mean,
              sd = sd,
              log = TRUE)
  - sum(fs, na.rm = T)
}

fit <- stats4::mle(
  nll,
  start = list(mean = 0, sd = 1),
  method = "L-BFGS-B",
  lower = c(0, 0.01)
)

From the MLE result, we can get the estimated mean and standard deviation of the sample distribution above.

coef(fit)
sample1_mean <- coef(fit)[[1]]
sample1_sd <- coef(fit)[[2]]

The estimated mean is r sample1_mean and the estimated standard deviation is r sample1_sd.

Step 2: Approximate median distribution

Approximate the sampling distribution of the median, conditional on the estimate of the distribution in the previous step.

In the previous step, we get a pair of estimated values for the mean and standard deviation. Based on these parameters, we can generate new distributions to simulate the original distribution.

Now we need to get the median of the new distribution. If we repeat the process many times, we can get the sampling distribution of the median for the estimated distribution.

median_list <- rep(NA, 500)
for (i in seq_along(median_list)) {
  median_list[i] <-
    median(rnorm(N, mean = sample1_mean, sd = sample1_sd))
}
#hist(median_list,breaks = 100)

Step 3: Calculate 95% CI

Calculate a 95% confidence interval from the approximated sampling distribution.

For the median distribution we got in the previous step, we can use the quantile() function to get the 95% confidence interval.

sample1_quantile95 <- quantile(median_list, c(0.025, 0.975))
sample1_quantile95

Step 4: Calculate coverage probability

Now we will explain the concept of coverage probability and calculate it.

First, create a matrix to save the distributions we are going to generate. Each column is one distribution. Then use the method from the previous steps to generate all the distributions.

samples <- matrix(nrow = N, ncol = 1000)
for (i in 1:ncol(samples)) {
  samples[, i] <- rnorm(N)
}

Now create a matrix to save the estimated parameters of each distribution.

coef <- matrix(nrow = 2, ncol = ncol(samples))
for (i in 1:ncol(samples)) {

  coef[1, i] <- mean(samples[, i]) #coef(fit)[[1]]
  coef[2, i] <- sd(samples[, i]) #coef(fit)[[2]]

}

Now create a matrix to save the 95% confidence intervals.

quantile95_list <- matrix(nrow = 2, ncol = ncol(samples))

For each pair of estimated parameters, create an estimated distribution and then get the median. Repeat this process r N times, calculate the 95% confidence interval, and save the interval in the matrix.

for (j in 1:ncol(samples)) {
  median_list <- rep(NA, N)
  for (i in seq_along(median_list)) {
    norm_dist <- rnorm(N, mean = coef[1, j], sd = coef[2, j])
    median_list[i] <- median(norm_dist)
  }
  quantile95 <- quantile(median_list, c(0.025, 0.975))
  quantile95_list[1, j] <- quantile95[[1]]
  quantile95_list[2, j] <- quantile95[[2]]

}

To calculate the coverage probability, we can save all the judgment results in a vector. The coverage probability is the number of successful captures divided by the number of distributions.

interest <- rep(NA, ncol(samples))
for (i in seq_along(interest)) {
  interest[i] <-
    case_when(
      quantile95_list[1, i] > 0 | quantile95_list[2, i] < 0 ~ 0,
      quantile95_list[1, i] <= 0 &
        quantile95_list[2, i] >= 0 ~ 1,
    )
}
coverage_probability <- sum(interest) / length(interest)
sum(interest)
coverage_probability

This time, the coverage probability is r coverage_probability.

sum(quantile95_list[2,] < 0)
sum(quantile95_list[1,] > 0)

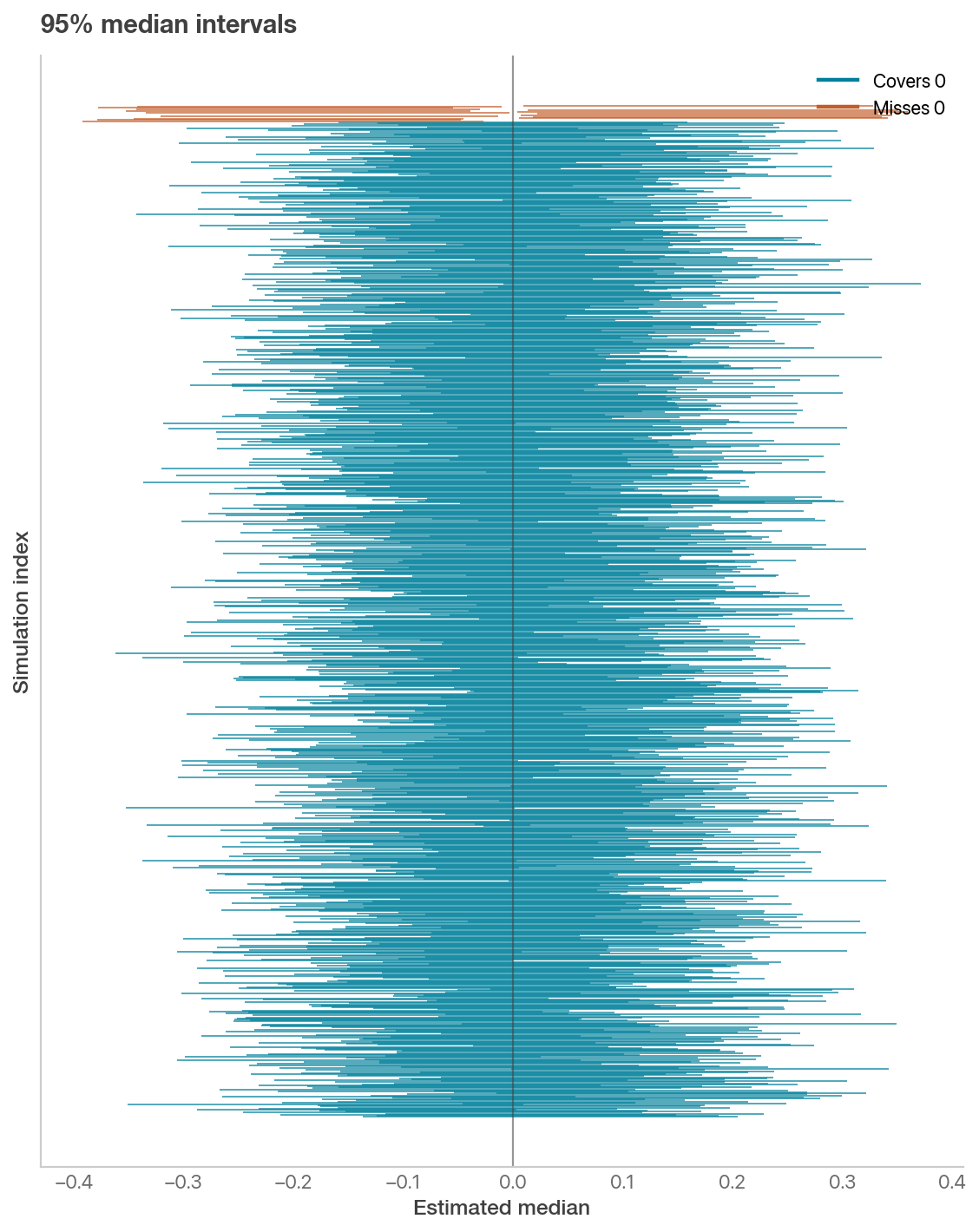

Step 5: Simulation visualization

Perform the simulation.

To make the results more intuitive, we can use the geom_linerange() function in ggplot to draw the 95% confidence interval. We set the intervals that did not capture the true mean of the original distribution, 0, as red lines.

quantile95_df <- as.data.frame(t(quantile95_list))
quantile95_df["sample_num"] <- seq(1:ncol(samples))
quantile95_df["interest"] <- interest
ggplot(quantile95_df) +
  geom_linerange(aes(x = sample_num,
                     ymin = V1,
                     ymax = V2),
                 color = case_when(interest == 1 ~ "blue",
                                   interest == 0 ~ "red")) +
  geom_hline(yintercept = 0,
             color = "gray",
             alpha = 0.7) +
  coord_flip() +
  theme_bw()

Step 6: Future works

How to change the simulation to learn more about the operating characteristics of the chosen method for constructing the 95% confidence interval.

I would choose larger sample sizes to test the process, for example by setting N to 5000 or 10000. I could also calculate other quantiles of the distributions to see whether there are any differences. After that, I might use distributions other than the standard normal distribution, such as gamma or beta distributions.
